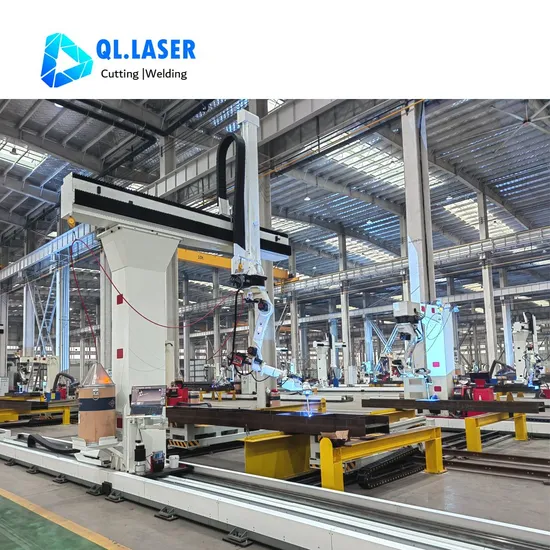

New Technology Industrial Robotic Welding | RFQ Sourcing Details

1.Suitable for various small components, such as cow legs, cross grid structures, purlin pallets, etc;2.Customize workbenches or single/double axis positioners according to the type of workpiece and welding needs, flexibly meeting various welding scene requirements;3.The software can be operated in a foolproof manner after 1-2 days of training, and there is no need for manual intervention throughout the entire process after loading, greatly reducing the skill requirements for operators.

Product Parameters Content Parameter Range Unit Remarks Degrees of Freedom (Axes) 6+2 / / Required Ambient Temperature -10~45 ºC / Maximum End Load 6 Kg / Recommended Floor Space W1200*L1200*H600 mm / Peak Total Power 40 kW / Rated Input Voltage/Frequency 380+/-10% V Three-phase Rated Input Frequency 50 Hz / Floor Space 2400*4000 mm / Our Advantages Robot Integrated Drive and Control System Technical Features: Comes with a built-in robot drive system, revolutionizing the traditional teaching programming system.

The software automatically plans the robot's motion trajectory and adjusts the welding posture. Software planning allows for in Features: The scene model presents a 1:1 replication of the physical object-what you see is what you get.

Operation through the computer interface, with the physical object following movements. Scene-generated trajectory, one-click command, and welding can begin. Real-time communication, integration of virtual and physical, command execution.

No-Teaching, No-Programming Technical Features: Automatic Programming · Smart and Convenient : Import the 3D model of the workpiece, automatically recognize and extract welding seam information.

You can edit the welding seam simply by clicking the model, reducing operational difficulty, allowing staff to get started easily. Process Commands · Rapid Deployment : Corner welds, intermittent welding, multi-layer and multi-pass commands can be selected with one click.

Vision Guidance · Automatic Path Planning : Using line laser scanning, the robot quickly locates the start and end positions of the welding seam. Built-in Welding Process Library Technical Features: Blueprint Import - Parametric Modeling : Import 3D blueprints of the workpiece.

Supports exporting and importing workpiece blueprints with already edited welding seams. Parametric modeling for similar types of workpieces, such as gussets and I-beams. Weld Seam Editing : Select weld edges to batch-generate weld seams, break over weld holes, and continuously weld edges.

Choose welding processes according to the weld seam (multi-layer and multi-pass, upward vertical corner weld). Simulation Check : Verify whether the running trajectory is reasonable, or if there is any interference. Ensure that the welding angle satisfies the welding process.

Visual Positioning and Tracking Module 3D Camera Initial Positioning : Captures a large area of 2m x 2m;multiple photos can be stitched together for point cloud data, no worries about larger workpieces. The photographing accuracy has an error margin of ±0.5mm, fully meeting welding precision requirements.

Line Laser Guidance Module : Actively collects welding seam information and processes it in real-time, analyzing the collected images to acquire the welding seam's position, which can be used to correct the welding trajectory or guide welding.

"Eye-in-Hand"-Compound 3D Camera : Solves imaging challenges in complex working conditions through the "eye-in-hand" system: Large field of view, high precision, 3D. Accura d. Precise positioning prevents collisions during the welding process.

Full graphical interface operation-no prior robot operation experience required, easily completing the entire workflow. Welding Robot Welding Samples: Welding Ro
